RASAero II Example Run

Full Metal Jacket - Flight 3



Presented below is a RASAero II software example run for the Full Metal Jacket - Flight 3 rocket, an O10000 powered high power rocket which was optically tracked to 37,981 ft.

The rocket geometry, rocket motor used, launch site and launch angle data, and the rocket weight are presented below. The Full Metal Jacket - Flight 3 configuration rocket was tower launched, and thus had no rail guides, launch lugs, or launch shoes.

The RASAero II rocket file for this rocket (Full Metal Jacket1.CDX1) is included in the RASAero II software download.







ex_1

Full Metal Jacket - Flight 3, powered by O10000 rocket motor,
optically tracked to 37,981 ft.







ex_2

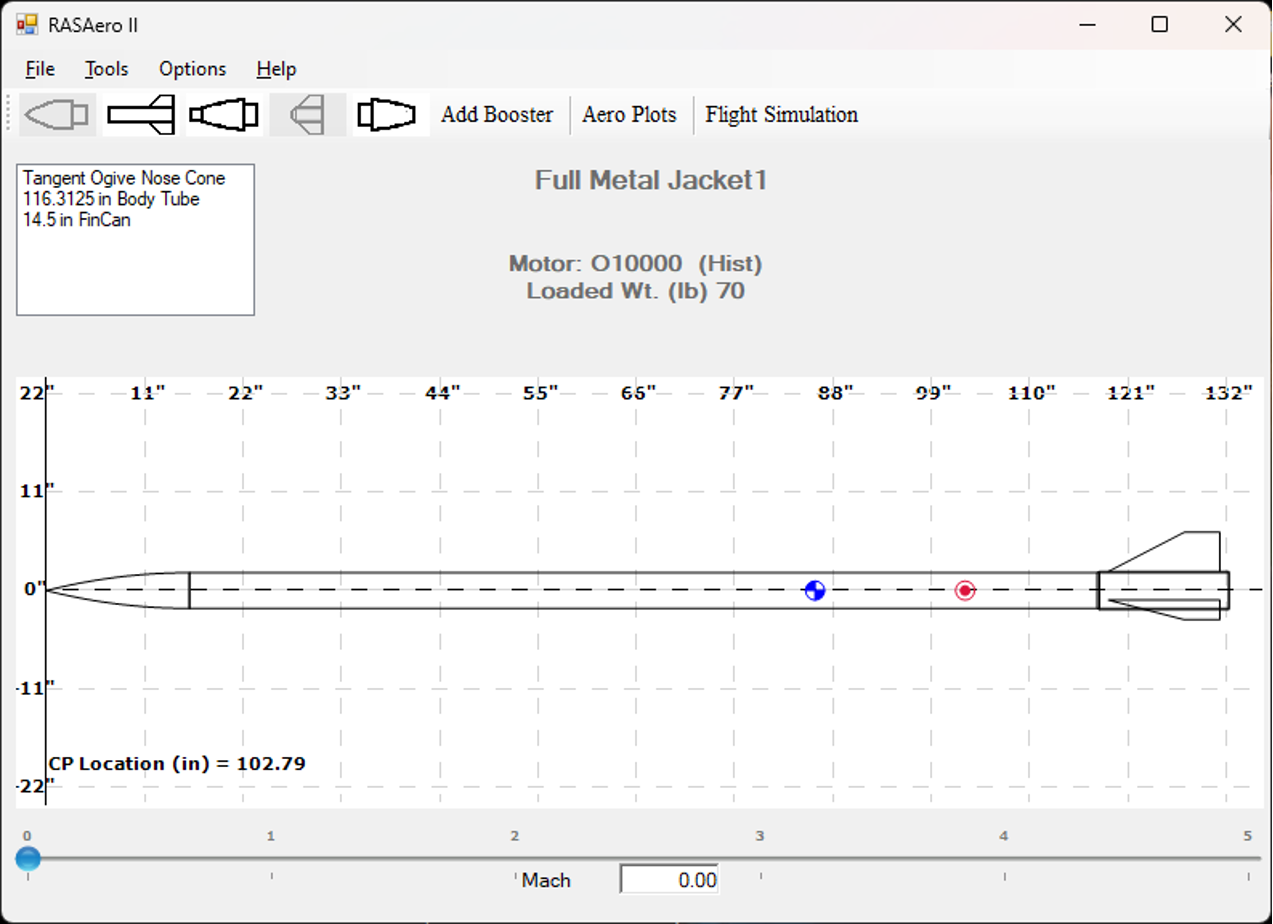

RASAero II Main Screen with scale rocket drawing for the Full Metal Jacket - Flight 3 rocket, including Center of Gravity (CG) and Subsonic Center of Pressure (CP).







ex_3

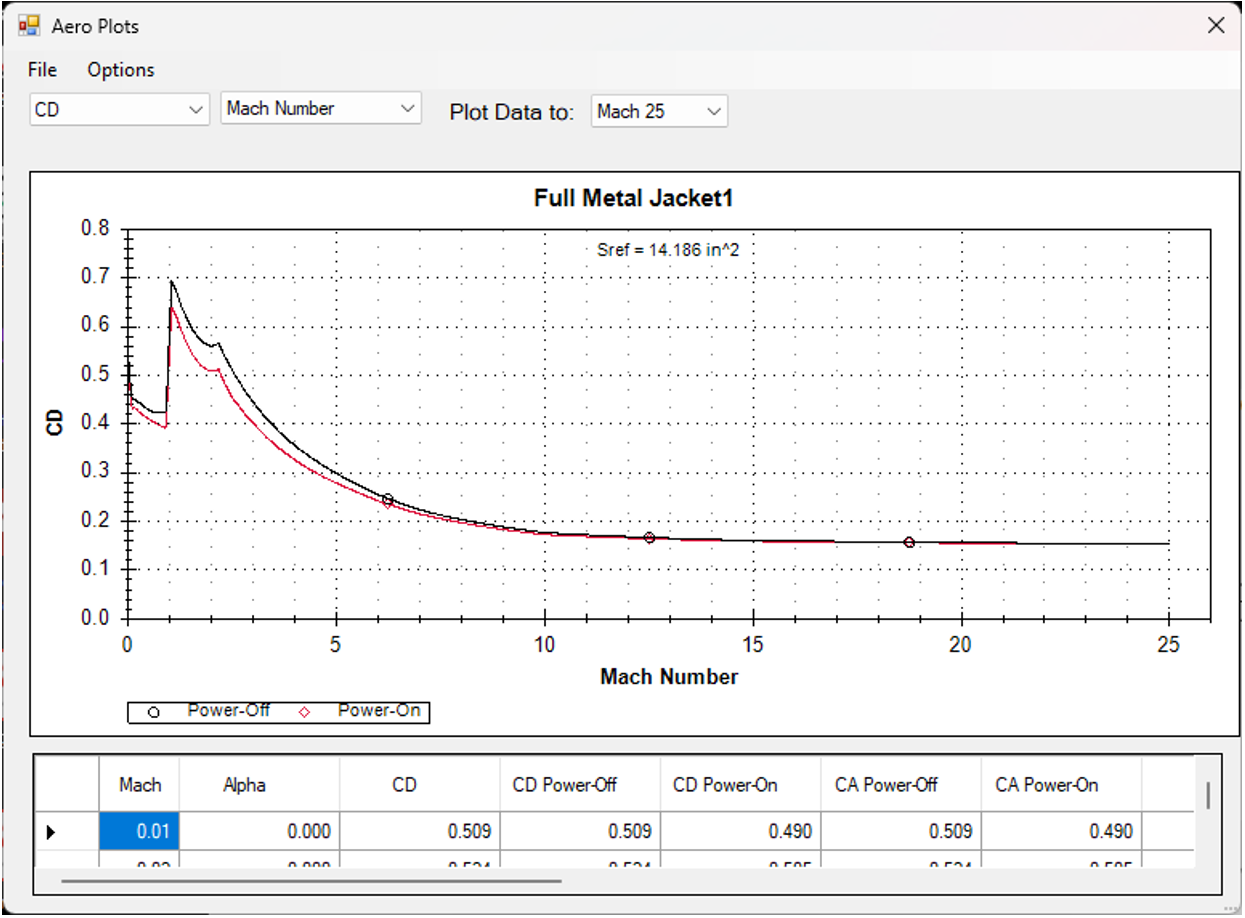

RASAero II aerodynamic data plot for the Full Metal Jacket - Flight 3 rocket;
power-on and power-off drag coefficient (CD) versus Mach number.







ex_4

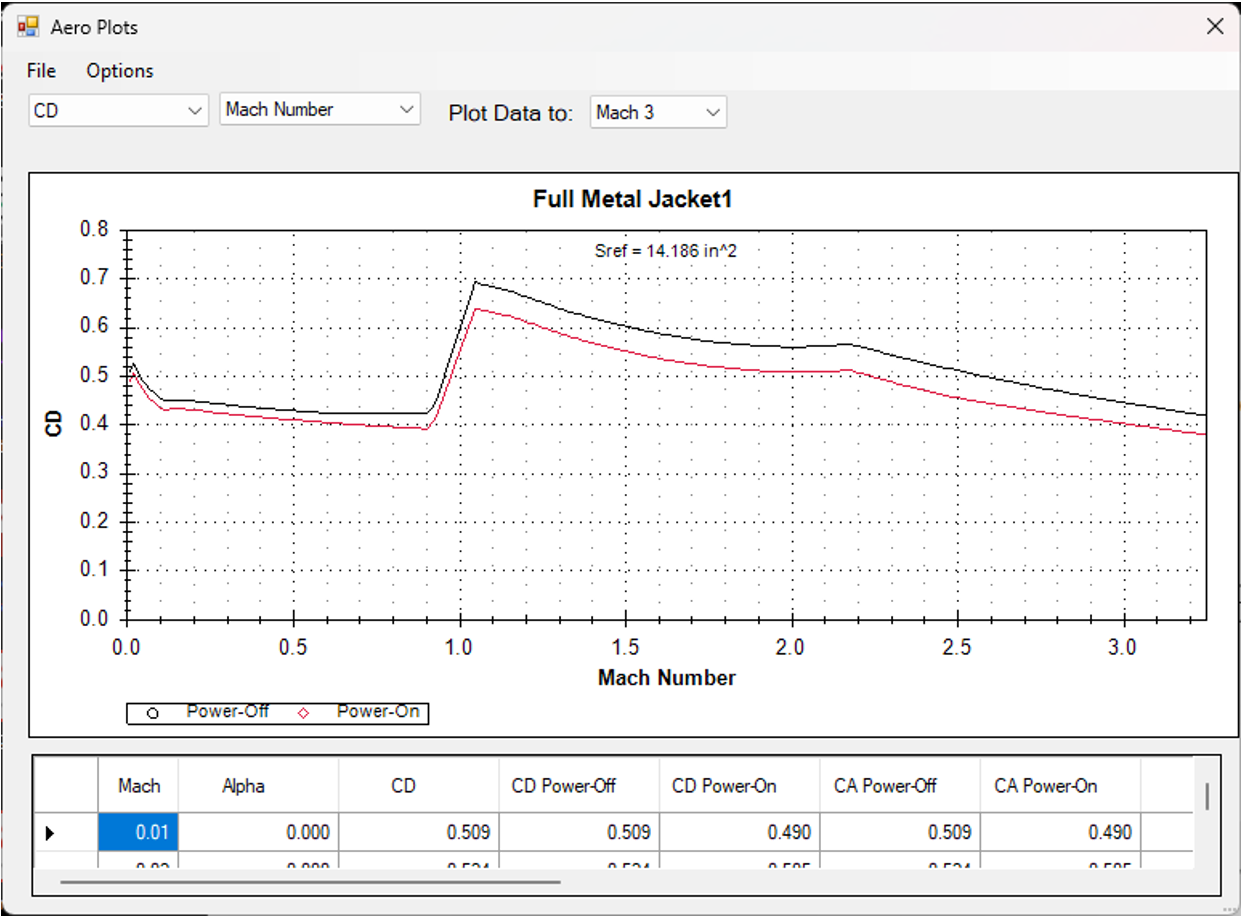

RASAero II aerodynamic data plot for the Full Metal Jacket - Flight 3 rocket;
power-on and power-off drag coefficient (CD) versus Mach number,
plot zoomed in to Mach 0-3.







ex_5

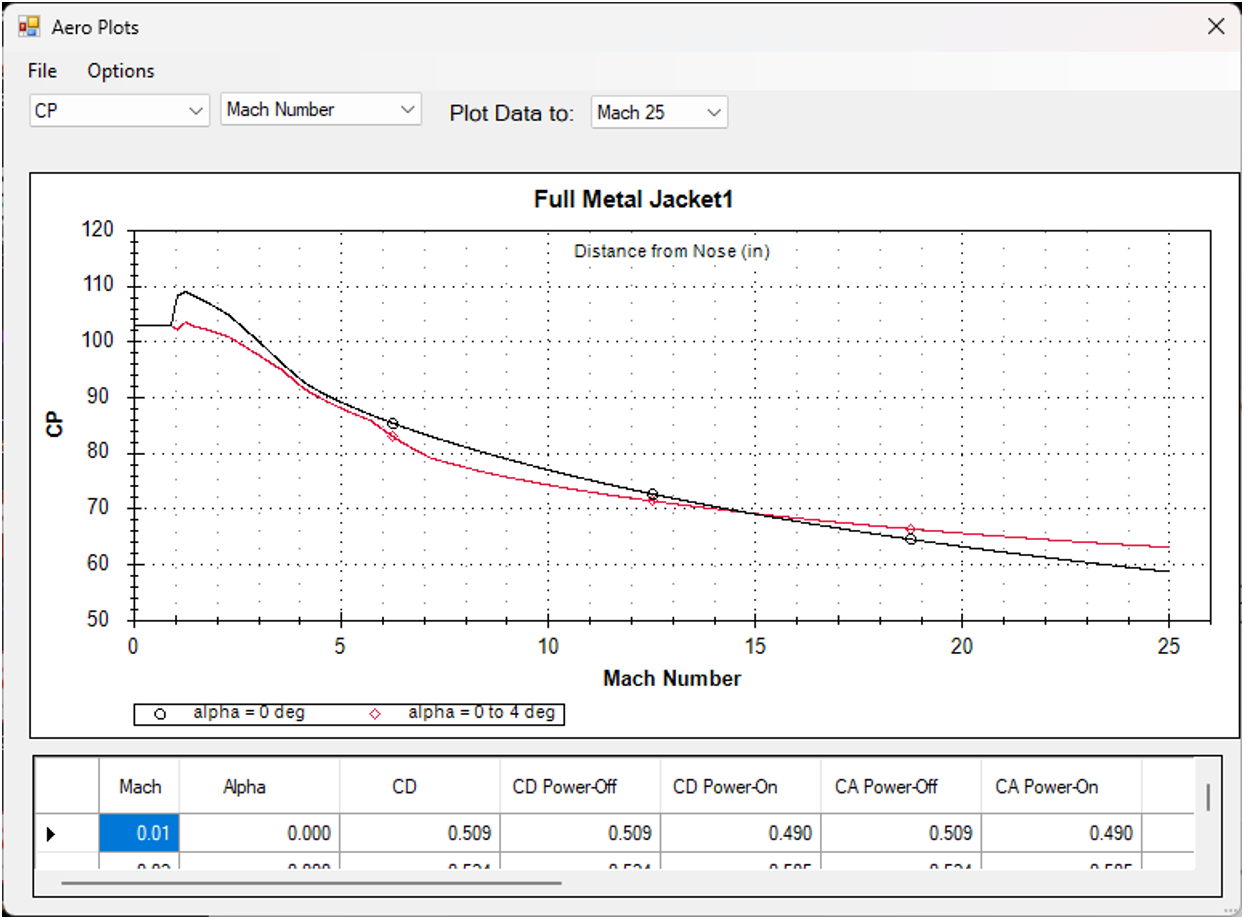

RASAero II aerodynamic data plot for the Full Metal Jacket - Flight 3 rocket;
Center of Pressure (CP) versus Mach number.







ex_6

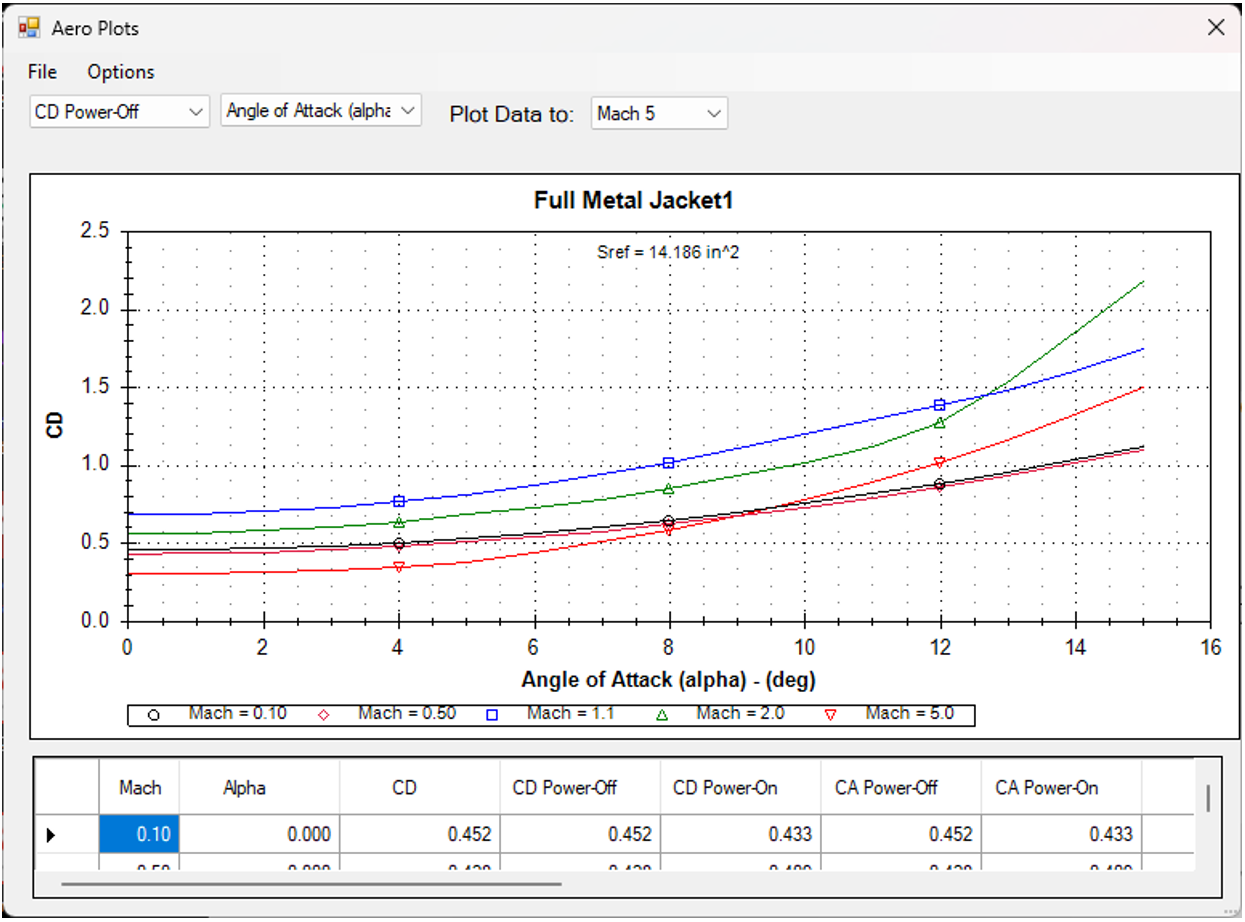

RASAero II aerodynamic data plot for the Full Metal Jacket - Flight 3 rocket;
power-off drag coefficient (CD) versus angle of attack.







ex_7

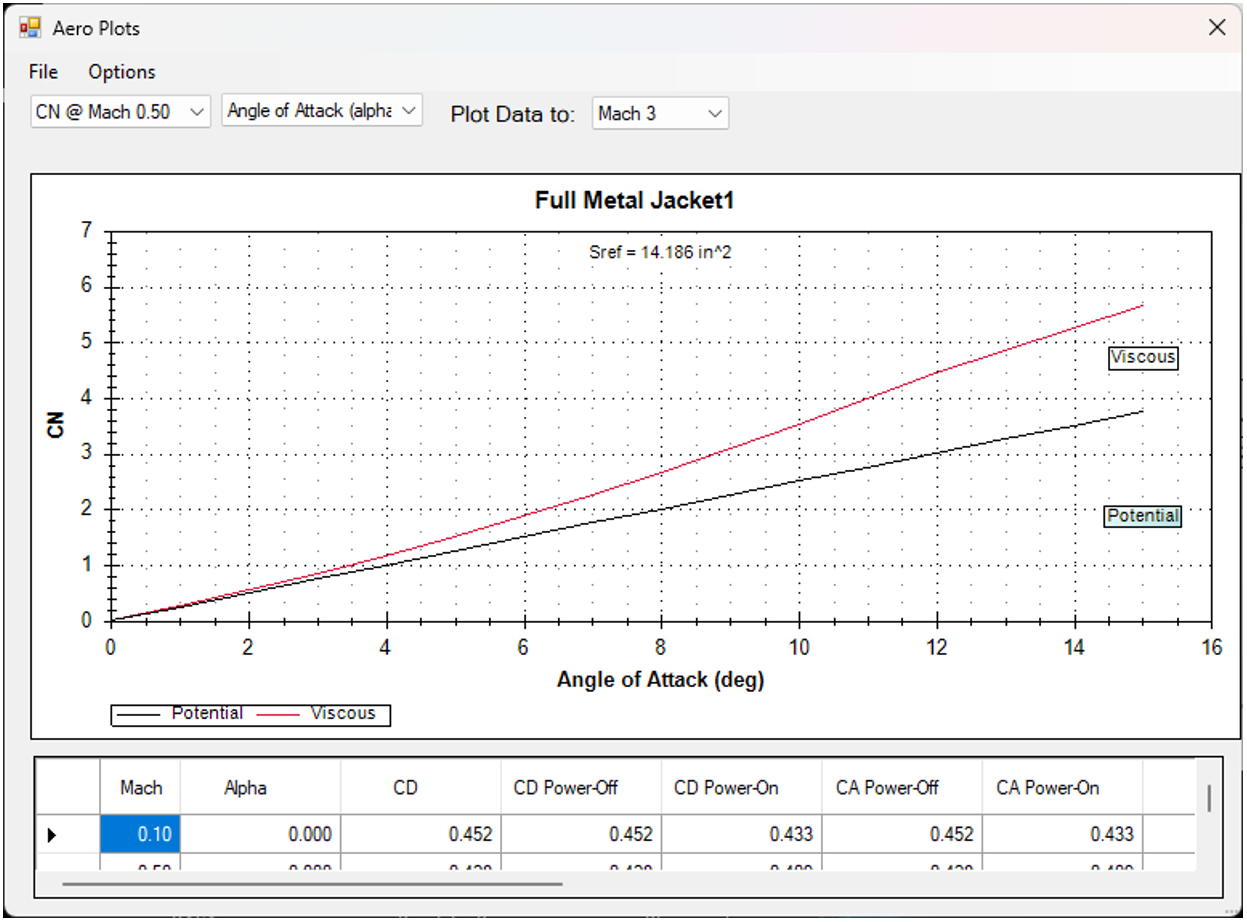

RASAero II aerodynamic data plot for the Full Metal Jacket - Flight 3 rocket;
normal force coefficient (CN) versus angle of attack at Mach 0.5 using
Rogers Modified Barrowman Method, showing potential and viscous
normal force contributions.







ex_8

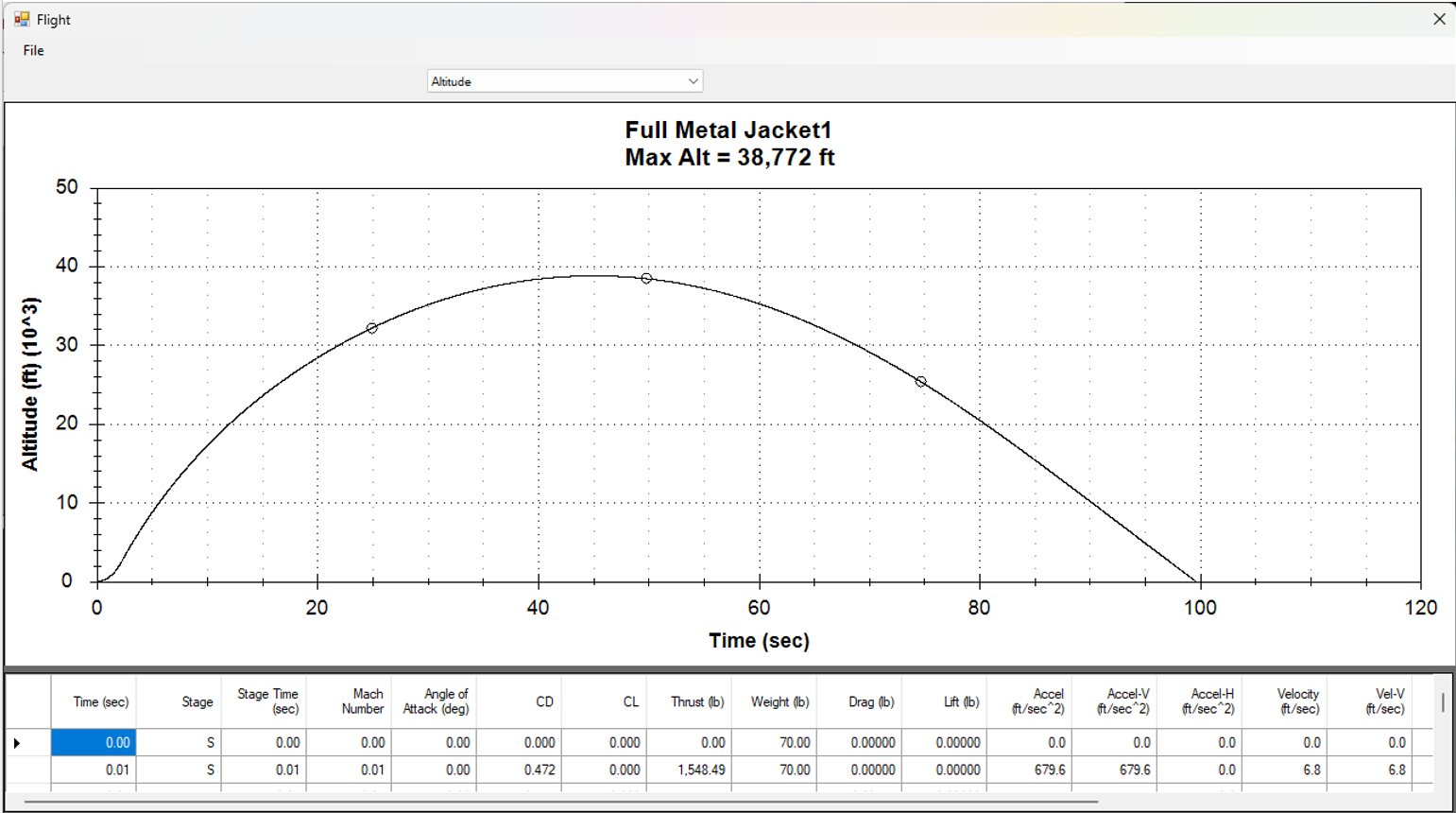

RASAero II flight simulation output for the Full Metal Jacket - Flight 3 rocket;
altitude versus time.







ex_9

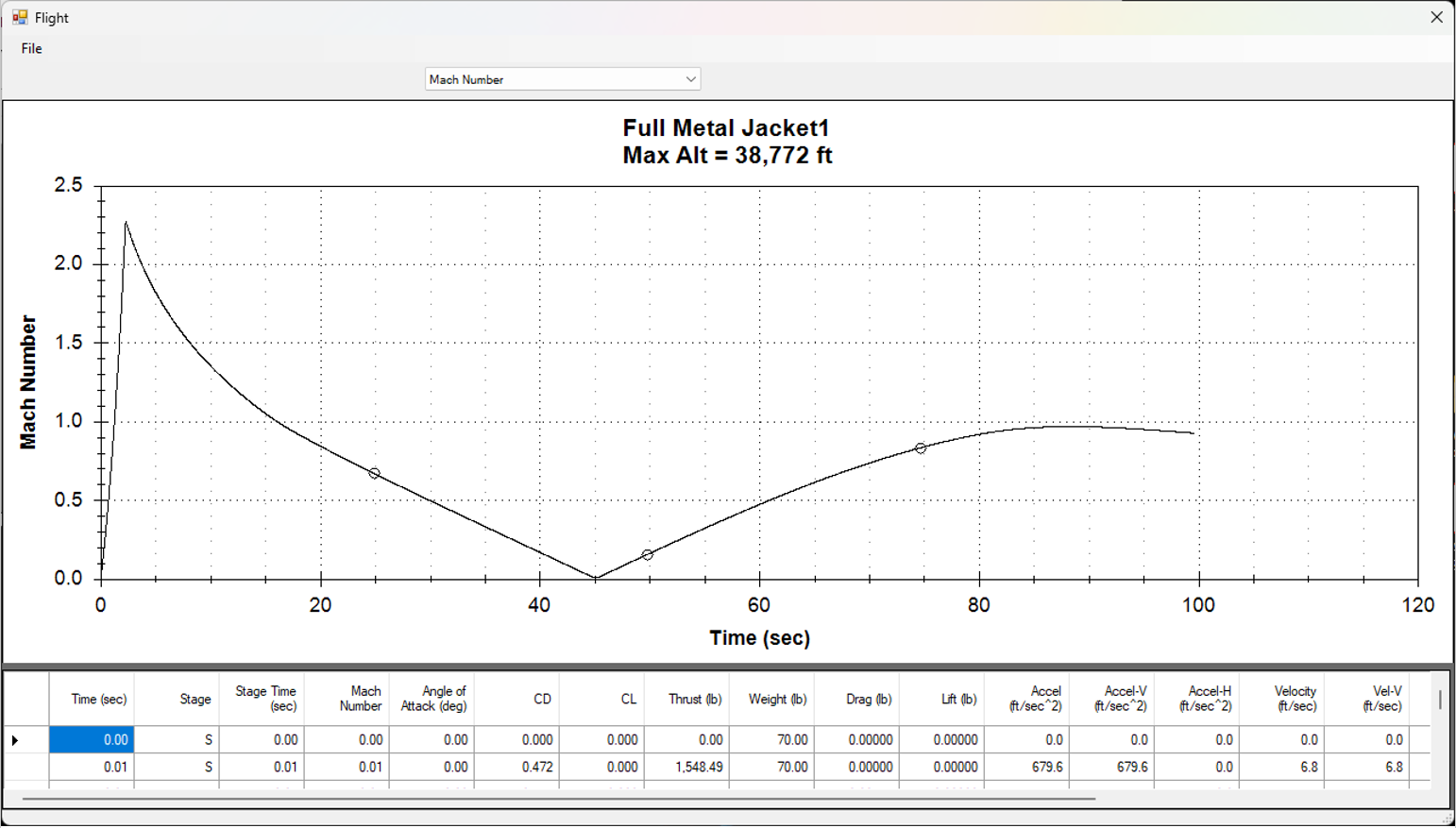

RASAero II flight simulation output for the Full Metal Jacket - Flight 3 rocket;
Mach number versus time.





  For the Full Metal Jacket - Flight 3 rocket the RASAero II flight simulation predicted altitude is 38,772 ft, an error of only 2.08% compared to the optically tracked altitude of 37,981 ft.
